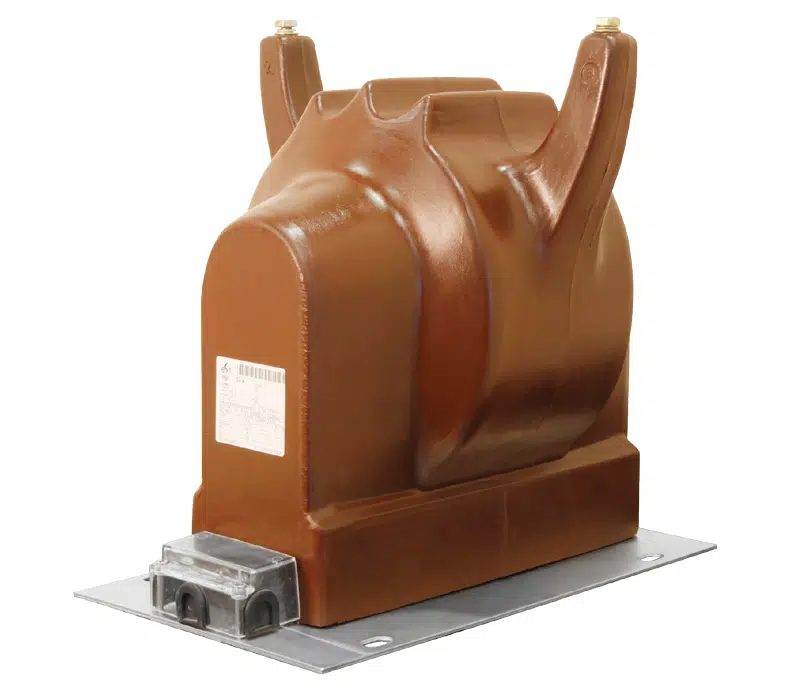

2VTM 20
MV Indoor Current Transformers
Product Details

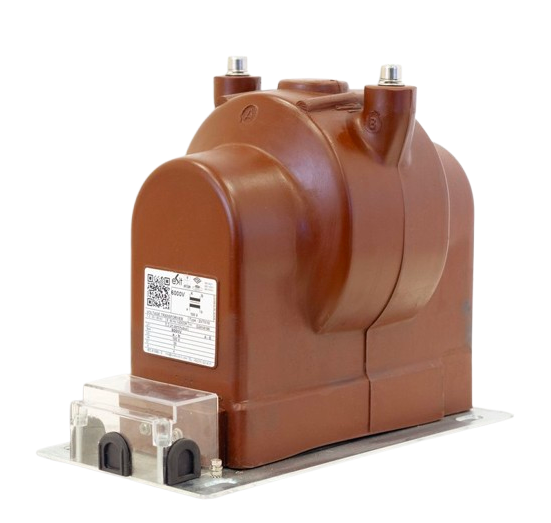

Indoor Voltage Transformer
Type: 2VTM
Double Pole, Cast Resin, Phase to Phase
Technical Information
| TYPE | 2VTM 20 | |
|---|---|---|
| Operating voltage (max.) | 17.5 kV-24 kV | |
| Rated power-frequency withstand voltage (1min) | 38 kV-50 kV | |
| Rated impulse test voltage (1,2/50us) full wave | 95 kV-125 kV | |
| Rated frequency | 50 Hz, 60 Hz | |
| Rated primary voltage | 15 – 22 kV | |
| Secondary voltage | 100 V, 110 V, 120 V, 220 V, 230 V | |
| Rated burden in class | 0.2 | 20 VA |
| 0.5 | 60 VA (90 VA) | |
| 1.0 | 250 VA | |
| Rated thermal limiting output | 400 VA / 6A | |
| Rated burden for protection purpose in class | 3P | 100 VA |
| Insulation Class | E | |
| Ambient temperature | -5……….+35 °C | |
| Altitude | 1000 m | |
| Standard | IEC, VDE, ANSI | |
| Weight (approx) | 40 kg |
Certificates
TH OHSAS 18001:2007
TS EN ISO 9001 2015
TSE 61869-3 Gerilim
