VTMF 30-P
Product Details

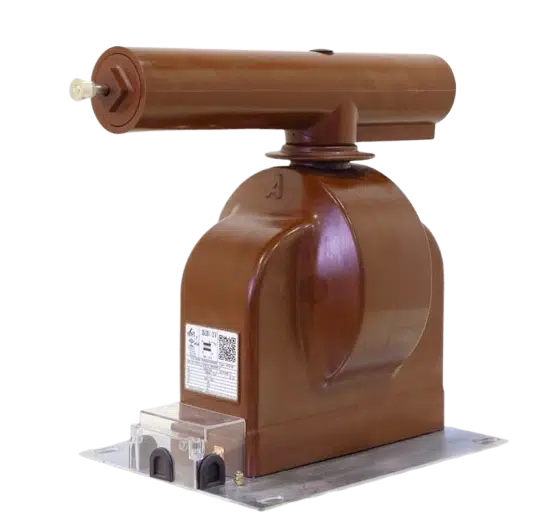

Indoor Voltage Transformer
Type: VTMF
Single Pole, Cast Resin, Phase to Earth
Technical Information
| TYPE | VTMF 30-P | |
|---|---|---|
| Operating voltage (max.) | 36 kV | |
| Rated power-frequency withstand voltage (1min) | 70 kV | |
| Rated impulse test voltage (1,2/50us) full wave | 170 kV | |
| Rated frequency | 50 Hz, 60 Hz, | |
| Rated primary voltage | 30 – 36/√3 kV | |
| Secondary voltage | 100√3V, 110 √3V, 120√3V, 380√3V, 400√3V | |
| Rated burden in class | 0.2 | 20 VA (25 VA) |
| 0.5 | 100 VA | |
| 1.0 | 150 VA (180 VA) | |
| Rated thermal limiting output | 600(1000) VA / 6A | |
| Rated burden for protection purpose in class | 3P | - |
| Rated voltage factor 8h | 1.9 x Un | |
| Thermal burden rating of winding for earth-fault detection | 350 VA / 4A | |
| Insulation Class | E | |
| Ambient temperature | -5……….+40 °C | |
| Altitude | 1000 m | |
| Standard | IEC, VDE, ANSI | |
| Weight (approx) | 50 kg |

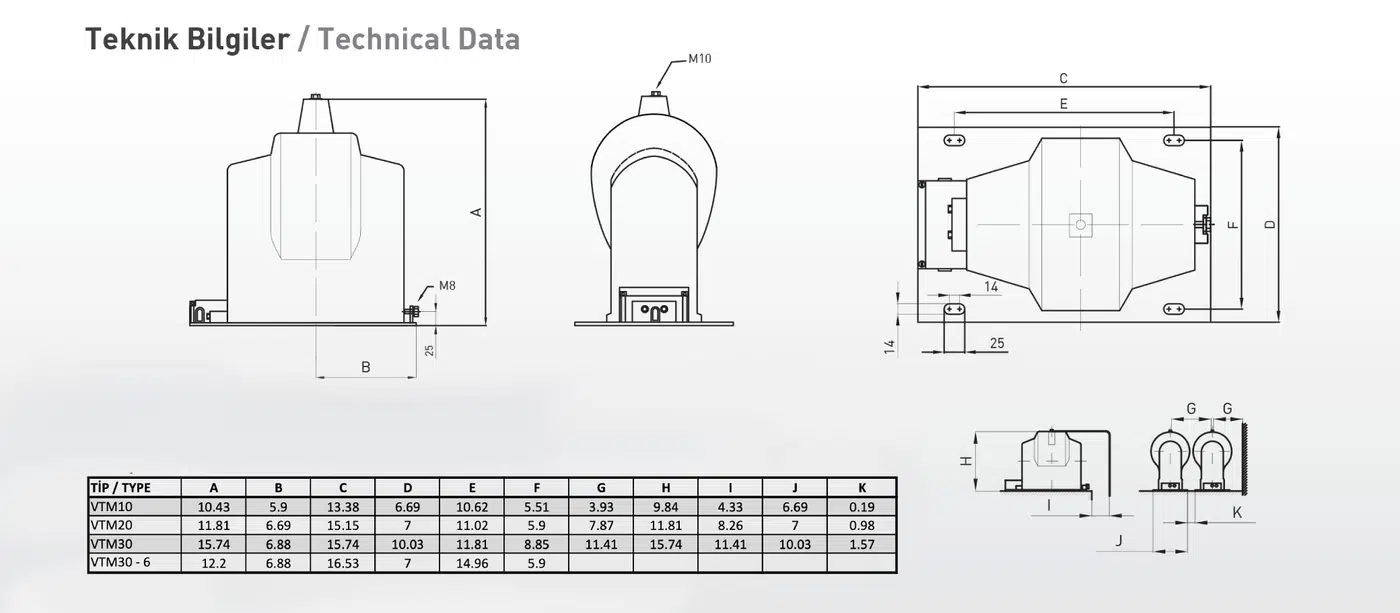

Technical Drawing
