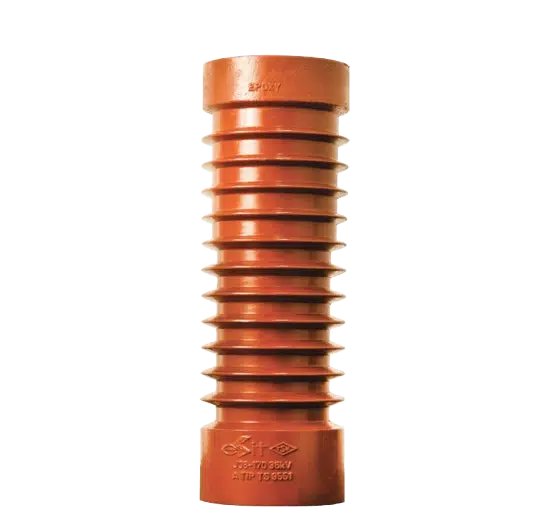

Post Insulator
Insulators
Product Details
Insulator
Type: Indoor
Cast Resin
Technical Information
| Type | Weight | Um | Minimum Bending | Dimension (mm) | Min. Creepage | Rippes | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | kV | N | h | e* | d1 | d2 | d3* | d4 | t1 | t2 | t3* | t4 | |||
| J010-75 | 1.1 | 12 | 10000 | 130 | 46 | 98 | M20 | M10 | M16 | 35 | 25 | 15 | 47 | 240 | 3 |
| J010-95 | 1.4 | 17.5 | 10000 | 175 | 46 | 99 | M20 | M10 | M16 | 35 | 25 | 15 | 47 | 210 | 5 |
| J04-175 | 1.6 | 36 | 4000 | 300 | 36 | 80 | M16 | M6 | M12 | 35 | 18 | 9 | 47 | 520 | 11 |
| J010-170 | 3.0 | 36 | 10000 | 300 | 46 | 101 | M24 | M12 | M16 | 45 | 25 | 12 | 57 | 488 | 11 |
| 10N-1000 | 1.1 | 12 | 10000 | 130 | 46 | 98 | M20 | M10 | M16 | 35 | 25 | 15 | 47 | 240 | 3 |
| 15N-1000 | 1.4 | 17.5 | 10000 | 175 | 46 | 99 | M20 | M10 | M16 | 35 | 25 | 15 | 47 | 210 | 5 |
| 30N-500 | 1.6 | 36 | 4000 | 300 | 36 | 80 | M16 | M6 | M12 | 35 | 18 | 9 | 47 | 520 | 11 |
| 30N-1000 | 3.0 | 36 | 10000 | 300 | 46 | 101 | M24 | M12 | M16 | 45 | 25 | 12 | 57 | 488 | 11 |

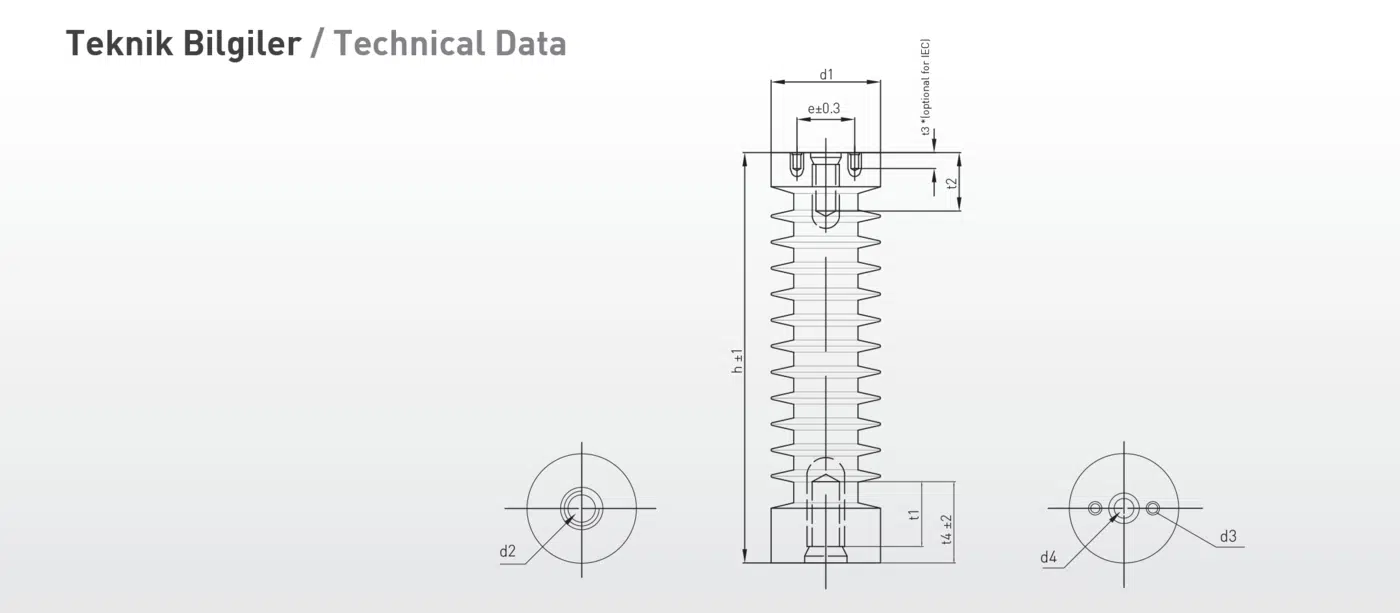

Technical Drawing
